ISO 9001:2015 | MSME | ZED Bronze Certified

Reciprocating Air Compressor Manufacturer in Kolkata

ISO 9001:2015 TUV certified and serving industries across Pan India since 2003.

View All Products
0

Years Experience

0

Happy Clients

0

Countries Served

Industrial Reciprocating Air Compressor Suppliers in Kolkata

Many industries and workshops in Kolkata operate with intermittent air demand, where continuous compressors lead to unnecessary energy use, higher wear, and inefficient operation. In such conditions, selecting the wrong compressor type increases running costs and reduces overall equipment life.

Frank Compressors manufactures reciprocating air compressors in Coimbatore and supplies directly to Kolkata and West Bengal, operating under ISO 9001 certified standards with strict quality control. Available in single and two stage, oil lubricated and oil free variants from 0.5 HP to 20 HP and above, these systems deliver energy efficient operation with reliable performance in demanding industrial conditions, supported by installation and after sales service.

Why Kolkata Industries
& Workshops Use
Reciprocating Air Compressors

Kolkata has thousands of small and medium workshops, auto service units, printing houses, and light manufacturing setups across Howrah, Park Circus, Tangra, and nearby industrial zones, all needing a reciprocating air compressor in Kolkata for reliable, cost-effective compressed air in intermittent operations.

Call Now

Lower Initial Investment

Reciprocating air compressors have a lower purchase cost than screw systems, making them suitable for small workshops and light industrial setups across Kolkata without high upfront investment.

High Pressure Output

A two stage reciprocating air compressor in Kolkata delivers higher discharge pressure than most rotary systems, supporting tyre inflation, PET bottle blowing, sandblasting, and high pressure tool operations.

Reliable in Intermittent Use

Reciprocating compressors operate in start stop cycles, matching intermittent air demand in auto service centres, printing units, and workshop tool stations that run air in short bursts.

Key Features of Our Reciprocating Air Compressors

  • Single stage and two stage compressor options
  • Oil lubricated and oil free variants
  • Pressure range up to around 12.5 bar
  • Compact design for small workshop spaces
  • Low maintenance and easy servicing
  • Reliable performance for workshops and industrial use
  • Lightweight pistons improve efficiency
  • Cast iron cylinders with radial fins for cooling
  • Forged steel connecting rod with needle bearing
  • Crankshaft with double-end ball bearings
  • Finger valves and disc valves for airflow control
  • Back pressure relief valve for smooth startup

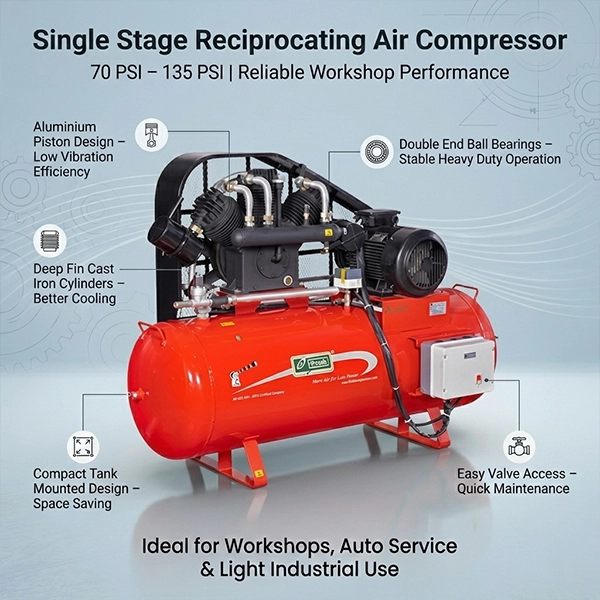

Single Stage Reciprocating Air Compressors

A single stage reciprocating air compressor compresses air in one stroke, delivering 70 PSI to 135 PSI for workshop and light industrial use. In Kolkata, it suits operations that need reliable compressed air for moderate pressure tasks with intermittent demand.

Special Features:

  • Aluminium Piston Design: Reduces reciprocating mass, lowers vibration, and improves efficiency at moderate pressure.
  • Double End Ball Bearings: Crankshaft runs on double end bearings with forged steel connecting rods for stable operation.
  • Deep Fin Cylinders: Cast iron cylinders with radial fins enable faster heat dissipation during intermittent use.
  • Compact Tank Mounted Build: Integrated compressor and tank design saves space and simplifies installation.
  • Easy Valve Access: Concentric disc and finger valves allow quick inspection and replacement.

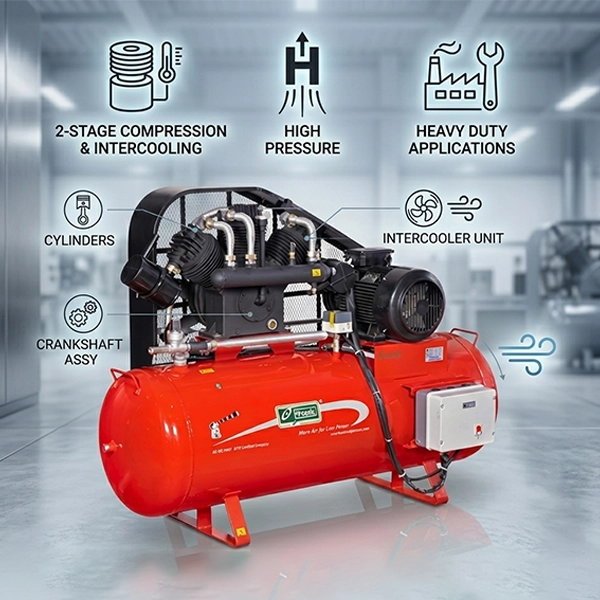

Two Stage Reciprocating Air Compressors

A two stage reciprocating air compressor in Kolkata compresses air in two stages with intercooling, delivering higher pressure with lower heat and better efficiency. We offers Giant and Smart Series models for high pressure use in workshops, tyre retreading, and industrial processes.

Special Features:

  • Two Stage Compression with Intercooling: Reduces heat load and improves overall compression efficiency.
  • Giant Series: Built for heavy duty applications requiring sustained high pressure output.
  • Smart Series: Designed for high pressure needs in compact and space efficient installations.
  • Special Steel Crankshaft: Overhung crankshaft with dual bearings ensures low vibration and stability.
  • Replaceable Crankpin Bush: Extends service life with easy component level replacement.
  • Precision Bored Cylinders: Individually cast cylinders ensure consistent performance and minimal leakage.

Available Capacities for Kolkata Industries

Frank Compressors manufactures and supplies reciprocating air compressors across a wide capacity range for direct supply to Kolkata and West Bengal.

0.5 HP Reciprocating Air Compressor
1 HP Reciprocating Air Compressor
2 HP Reciprocating Air Compressor
3 HP Reciprocating Air Compressor
5 HP Reciprocating Air Compressor
7.5 HP Reciprocating Air Compressor
10 HP Reciprocating Air Compressor
15 HP Reciprocating Air Compressor
20 HP Reciprocating Air Compressor
25 HP Reciprocating Air Compressor
30 HP Reciprocating Air Compressor
40 HP Reciprocating Air Compressor
50 HP Reciprocating Air Compressor
Custom capacity and tank configuration available on request

Enquiry For Compressor

0

Happy Clients

0

Dealers

How a Reciprocating Air Compressor Works

01

Air Intake

The piston starts the down stroke and draws in air through the intake valve and is filtered for dust.

02

Compression

The piston begins to upstroke which decreases volume and increases the pressure in the same manner as the engine compression stroke.

03

Intercooling (Two Stage Models)

Air passes through the inter-cooler before it enters the second-phase unit in order to reduce temperature and increase efficiency.

04

Discharge

When the pressure is established by the user, the outlet valve opens and air enters the Reserve Tank.

05

Storage & Delivery

The Reserve Tank stores the air, and the pressure switch controls the auto on/off feature of the compressor.

Technical Specifications

Model Piston
Displacement		 Free
Air Delivery		 Motor Power Compressor Tank
Capacity		 Dimension Weight
cfm cfm HP KW RPM LITRES L × W × H Kgs
Belt Driven - Heavy Duty (Maximum Pressure - 8 kg/cm2 116 PSI, Single Stage, / 1 Ph / 50 Hz)
Best-10D/10 4.3 2.0 1.00 0.74 2800 10 17×7×20 17
Best-20D/25 8.6 4.7 2.00 14.9 2800 25 20×11×24 36
Best-20D/50 8.6 4.7 220 19.7 2800 50 25×14×27 36
Belt Driven - Heavy Duty (Maximum Pressure - 8.5 kg/cm2 116 PSI, Single Stage 1 Ph / 3 Ph / 50 Hz)
Best-10ES/45 3.5 2.4 1.0 0.74 1150 45 35×15×30 68
Best-10ES/110 3.5 2.4 1.0 0.74 1150 110 40×16×34 80
Best-20ES/160 7.0 4.8 2.0 1.48 900 160 51×20×37 100
Best-30ES/160 8.0 5.5 3.0 2.20 750 160 51×20×37 105
Best-50ES/200 17.6 12.4 5.0 3.70 840 220 61×22×39 138
Belt Driven - Heavy Duty (Maximum Pressure - 10 kg/cm2 145 PSI, Single Stage/ 1 Ph / 3 Ph /50 Hz)
Best-30S/160 10.5 7.2 3.0 2.20 750 200 51×22×39 124
Best-30S/200 10.5 7.2 3.0 2.20 900 200 61×22×39 130
Best-50S/220 23.0 16.0 5.0 3.70 840 200 64×22×43 200
Best-75S/220 28.0 19.5 7.5 5.50 960 220 64×22×43 245

Technical Specifications

Model Piston Displacement Free Air Delivery Motor Power Compressor Tank Capacity
LPM cfm LPM cfm HP KW RPM LITRES
Belt Driven - Heavy Duty (Maximum Pressure - 12 kg/cm2 171 PSI, Two Stage, 415V / 3 Ph / 50 Hz)
Smart-30T/160 300 10.5 252 8.9 3 2.2 720 160
Smart-50T/200 500 17.6 422 14.9 5 3.7 840 220
Smart-75T/220 600 23.2 558 19.7 7.5 5.5 960 220
Smart-100T/500 1000 35.2 847 31.0 10 9.3 720 500
Smart-150T/500 1500 52.9 1273 44.9 15 11.0 1080 500
Belt Driven - Heavy Duty (Maximum Pressure - 17 kg/cm2 241 PSI, Two Stage/ 3 Ph / 50 Hz)
Smart 50TH/220 373 13.2 311 11 5.0 3.7 600 200
Smart 75TH/220 488 17 413 13 7.5 5.5 840 220
Belt Driven - Heavy Duty (Maximum Pressure - 30 kg/cm2 426 PSI, Two Stage/ 3 Ph / 50 Hz)
Smart 50H/200 240 8.5 201 7.1 5 3.7 720 220
Smart 75H/300 396 14 331 11.7 7.5 5.5 720 300

Technical Specifications

Model Piston Displacement Free Air Delivery Motor Power Compressor Tank Capacity
LPM cfm LPM cfm HP KW RPM LITRES
Belt Driven - Heavy Duty (Maximum Pressure - 12 kg/cm2 175 PSI, Three Stage/ 440 V/3 Ph/ 50 Hz)
Giant -200C/Base 2110 74.4 1715 61.80 20.0 14.8 900 500 V
Giant -250C/Base 2550 90 2116 74.70 25.0 28.5 900 1000 V
Sectors

Industries We Supply Reciprocating Air Compressors

Auto Workshops & Tyre Service Centres

Workshops in Howrah, Gariahat, and Kolkata use reciprocating air compressors for tyre inflation, spray painting, and pneumatic tools, with two stage models used for high-pressure work like sandblasting.

Printing & Publishing Houses

Printing presses in Kolkata use compressed air for paper feeding, cleaning, and pneumatic actuation, where single stage reciprocating compressors handle intermittent demand at lower cost.

Woodworking & Furniture Units

Furniture workshops use reciprocating air compressors for spray finishing, nail driving, and sanding, with compact tank-mounted units fitting small floors without separate compressor space.

Dental Clinics & Medical Facilities

Oil-free reciprocating air compressors supply clean, quiet air to dental clinics, labs, and healthcare setups, with low-noise models suited for patient areas.

Plastic & Packaging Units

Plastic and blow moulding units use reciprocating air compressors for moulding and pneumatic work, where two stage models provide required pressure levels.

Foundries & Light Engineering Shops

Foundries and engineering shops in Howrah use reciprocating air compressors for sand moulding and tool operation, where cast iron construction suits tough shop conditions.

Construction Sites & Civil Works

Metro and infrastructure projects across Kolkata use portable reciprocating air compressors for jackhammers, pneumatic drills, and grouting on active sites.

Rice Mills & Agro Processing

Rice and grain units in West Bengal use reciprocating air compressors for sorting, cleaning, and bag sealing, where fixed speed models handle lower demand efficiently.

Smart Controls Built for Easy Operation

Our reciprocating air compressors come with a pressure switch control system that starts and stops the motor automatically based on tank pressure. The operator sets the pressure range once and the compressor manages itself from there.

  • Automatic start-stop based on receiver tank pressure level
  • Back pressure relief valve reduces motor torque at startup and protects the electrical system
  • Safety valve fitted to prevent over-pressurisation of the receiver tank
  • Digital or analogue pressure gauge for clear operating pressure visibility
  • Maintenance-friendly layout with accessible valves, pistons, and bearings

This simple, reliable control setup keeps Kolkata workshop operations running with minimal operator attention and low service requirements.

Why frank?

Why Frank Compressors for Reciprocating Air Compressors?

ISO 9001 Certified Production

Every unit is built and tested under ISO 9001 quality standards. Kolkata buyers receive a certified, production-ready compressor built for real industrial conditions.

Two Stage Models for High Pressure Work

Frank Compressor's giant series and smart series two-stage models are purpose-built for high pressure applications common across Kolkata's workshops, tyre retreading units, and fabrication shops.

West Bengal Installation and Service Support

We provide installation, commissioning, and after-sales service across Kolkata and West Bengal with genuine spare parts and fast technical response.

Get Reciprocating Air Compressors from Our Frank Compressors

Tell us your application, required pressure, and operating hours. Frank Compressor's technical team will recommend the right reciprocating air compressor model for your Kolkata facility with factory-direct pricing and local service support.

Call Whatsapp
FAQ

FAQs on Reciprocating Air Compressors in Kolkata

It compresses air using a piston moving inside a cylinder and stores it in a receiver tank. The stored air is then used as needed to run tools and equipment in workshops and industrial setups.

Single stage works for regular tools at moderate pressure. For tyre work, sandblasting, or heavier pneumatic loads, a two stage reciprocating air compressor is the right choice.

Yes, we manufacture and supply reciprocating air compressors to Kolkata, Howrah, and across West Bengal, with installation and service support.

A two stage oil-lubricated reciprocating air compressor handles both without strain. The final capacity depends on how many tools you run and for how long.

Yes, Oil-free models are used in food processing, pharma units, dental clinics, and labs where compressed air must stay clean and free from contamination.

Check how many tools run together and their air requirement in CFM. Based on that, the right model and tank size can be selected.

It depends on how long the machine runs each day and the site conditions. The design allows routine checks and servicing without much downtime.

Yes. Spare parts and service support are available across Kolkata and West Bengal to keep operations running without long delays.
