Certified Oil Free Scroll Air Compressors Manufacturer

Kolkata industries in pharmaceuticals, healthcare, food processing, laboratories, breweries, and electronics manufacturing cannot risk oil contamination in compressed air systems. Even trace oil affects product quality, damages sensitive equipment, and creates compliance problems in controlled production and medical environments.

Frank Compressors manufactures oil free scroll air compressors in Coimbatore under ISO certified standards and supplies directly across Kolkata and West Bengal. Built on fourth generation scroll compressor technology, these systems deliver 100% oil-free compressed air with low operating noise from 64 dB to 70 dB, compact installation, energy-efficient performance, and models ranging from 3 HP to 30 HP with tank-mounted and base-mounted configurations.

Why Kolkata Industries
Use Oil Free
Scroll Air Compressors

Kolkata’s pharma plants, hospitals, food processors, laboratories, breweries, and electronics manufacturers operate processes where even minor oil contamination affects production quality and regulatory compliance. Oil-injected compressors carry contamination risk even after filtration, while oil free scroll compressors eliminate the problem directly at the compression stage.

Call Now

Zero Oil Contamination

The scroll mechanism compresses air without allowing oil into the chamber, indicating there's no need for oil separators or filtration systems downstream.

Quieter Than Conventional Compressors

A complete compression cycle is achieved in 2.5 scroll turns, resulting in pulse-free air flow and operating noise levels in the range of 64 dB and 70 dB.

Fewer Moving Parts and Lower Maintenance

The mechanism uses only one moving component with no pistons, valves, connecting rods, or timing gears requiring regular replacement.

Energy Efficient Operation

High volumetric efficiency lowers power consumption per unit of compressed air compared to oil-free piston compressor systems.

Features of Frank Compressors Oil Free Scroll Air Compressor

  • Fourth generation compressor technology, acknowledged as the most advanced after piston and screw types
  • 100% oil-free compression with no contamination at any stage
  • Water-cooled vertical design for heavy-duty, uninterrupted operation
  • Rugged cast iron construction for long service life in industrial environments
  • Noise levels from 64 dB to 70 dB depending on model
  • Tank capacities from 220 litres to 270 litres and base-mounted options
  • Available from 3 HP to 30 HP across seven standard models
  • Flow rates from 8.5 CFM to 88 CFM at 8 to 10 kg/cm2 pressure
  • Simple maintenance with budget-friendly spare parts availability
  • Compact build for installation in limited indoor spaces
  • Ready to use with single-point power connection
  • Lower operating costs compared to oil-free piston alternatives

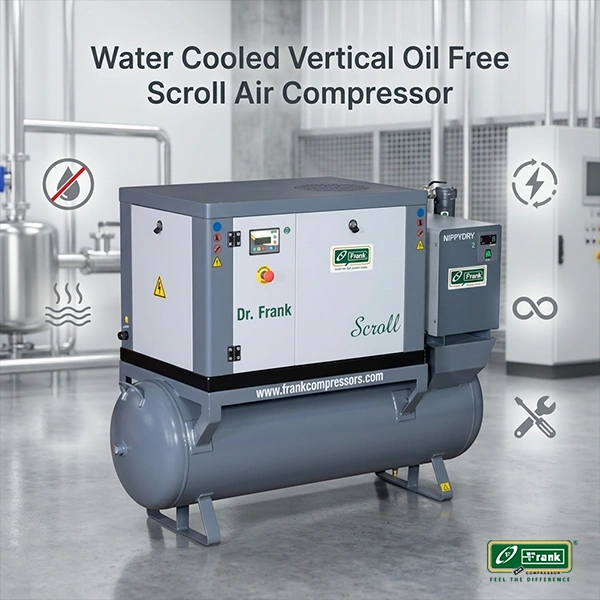

Water Cooled Vertical Oil Free Scroll Air Compressor

Our water cooled vertical oil free scroll air compressors are built for continuous-duty industrial operation across Kolkata’s pharma plants, food processing units, laboratories, and electronics manufacturing facilities. The water-cooled vertical design controls operating temperature more effectively under sustained load while supplying uninterrupted oil-free compressed air and optimising utility room floor space.

Special Features:

  • Water-Cooled Rugged Cast Iron Build: Water-cooled cast-iron construction handles continuous load without heat loss.
  • 100% Oil-Free Compression: No oil enters the compression chamber, guaranteeing air purity for pharma, food, and electronics.
  • Continuous Duty Performance: The system is designed for continuous operation during full production shifts without any cooling breaks.
  • Simplified Maintenance: Fewer moving parts mean fewer maintenance points and shorter service intervals compared to piston-based oil-free systems.
  • Budget-Friendly Spare Parts: Genuine replacement parts are easily available to ensure economical long-term operation and servicing.

Enquiry For Compressor

0

Happy Clients

0

Dealers

How an Oil Free Scroll Air Compressor Works?

01

Air Intake

Inlet filter removes dust and particulates before air enters the scroll compression stage for oil-free operation.

02

Scroll Compression

One scroll remains fixed while the second scroll orbits, progressively reducing chamber volume toward the centre outlet.

03

Non-Contact Operation

Scroll discs never touch directly during compression, eliminating oil lubrication and reducing compression surface wear.

04

Discharge

Compressed air exits through the centre discharge port after a 2.5-turn compression cycle with pulse-free airflow.

05

Delivery

Clean oil-free compressed air is stored in the receiver tank and supplied without downstream oil filtration requirements.

Technical Specifications


Model 		Power HP Comp. rpm Piston Displacement Free Air Delivery Maximum Working Pressure
cfm cfm kg/cm 2g psig
CT7x5V 30 750 164 110 8.8 125
CT8x5V 40 750 215 143 7.00 100
CT8x7V 50 650 260 180 9.50 135

Scroll Oilfree Air Compressors

Model Scroll Block Motor HP Flow cfm Pressure Kg/cm 2 Noise db Tank Capacity Litres Weight Kgs
OS 3/220 1 3 8.5/7.4 8/10 64 220 155
OS 5/270 1 5 15/12 8/10 67 270 240
OS 7.5/270 1 7.5 22.5/16.2 8/10 69 270 245
OS 10/270 2 10 30/23 8/10 67 270 265
OS 15/270 2 15 45/32 8/10 68 270 275
OS 20/Base 3 20 59/46 8/10 69 Base 515
OS 30/Base 4 30 88/69 8/10 70 Base 580
Sectors

Industries We Supply Oil Free Scroll Air Compressors to Kolkata

Pharmaceutical Manufacturing

Tablet coating, sterile filling, and cleanroom pressurisation require ISO 8573 compliant contamination-free compressed air.

Food & Beverage Processing

Food packaging and bottling sections use oil free scroll air compressors where compressed air directly supports hygienic production work.

Hospitals & Healthcare Facilities

Medical air systems inside hospitals need stable oil-free compressed air for ventilators, surgical equipment, and patient-care applications.

Dental Clinics

Dental clinics across Kolkata prefer low-noise oil free scroll compressors for handpieces, scalers, and air syringe operation during treatment.

Electronics & Precision Manufacturing

Electronics production lines use contamination-free compressed air because oil particles damage sensitive circuit and component surfaces.

Laboratories & Research Facilities

Labs and testing centres depend on dry stable compressed air for analytical instruments and continuous research operation.

Breweries & Dairy Operations

Breweries and dairy plants use oil-free compressed air during filling, processing, and fermentation monitoring where hygiene matters daily.

Bakeries & Food Production Units

Food production lines need clean compressed air across packaging and processing areas without constant piston compressor maintenance.

Lens & Optical Manufacturing

Optical lens cleaning and precision assembly processes require contamination-free compressed air to avoid surface marking problems.

Smart & Simple Controls for Sensitive Environments

Frank Compressors oil free scroll air compressors come as a ready-to-use standard package that covers everything needed for commissioning in Kolkata's pharma, food, lab, and healthcare facilities.

  • Compact skid-mounted compressor with belt guard and electric motor
  • Starter and control panel included as part of the standard package
  • Aftercooler and non-return valve fitted as standard
  • Single-point power connection, plug-in ready with no complex installation
  • Optional accessories include air dryer, compressed air filter, and air receiver
  • Water-cooled vertical models feature cast-in water jackets with engineered intercoolers for consistent cooling during prolonged operation
  • Single-point water inlet/outlet and air outlet connection on water-cooled models for easy site plumbing

The standard package reduces installation time and on-site labour significantly, making it practical for Kolkata's clinical, laboratory, and food production setups where quick commissioning matters.

Why frank?

Why Frank Compressors for Oil Free Scroll Air Compressors?

Direct Manufacturer Supply

Frank Compressors manufactures every oil free scroll air compressor in-house and supplies directly across Kolkata with factory-direct pricing.

Fourth Generation Compressor Technology

Scroll compressor technology delivers cleaner compressed air and higher efficiency than conventional piston and screw compressor systems.

Complete Product Range

Seven standard models from 3 HP to 30 HP and water-cooled vertical systems up to 50 HP are available.

ISO 8573 Compliant Air Quality

Oil-free compression meets compressed air purity requirements in pharmaceutical, food, medical, and electronics industries.

Buy Oil Free Scroll Air Compressors from Frank Compressors

Tell us your required air flow in CFM, operating pressure, noise sensitivity, and industry type. Frank Compressors's team will recommend the right oil free scroll air compressor model for your Kolkata facility with factory-direct pricing and local service support.

Call Whatsapp
FAQ

FAQs on Oil Free Scroll Air Compressors in Kolkata

Pharma plants, hospitals, laboratories, food processors, breweries, and electronics units use oil free scroll air compressors where contamination-free air is mandatory.

Even minor oil carryover creates GMP compliance issues and product rejection risks. Scroll compressors avoid that problem from the compression stage itself.

Yes. Water-cooled vertical models are built for continuous-duty operation across long production shifts without overheating issues.

Yes. Frank Compressors supplies directly across Kolkata and West Bengal with installation, commissioning, and after-sales technical support.

Most models operate between 64 dB and 70 dB, making them suitable for laboratories, clinics, and indoor production spaces.

Standard models deliver compressed air between 8 and 10 kg/cm² for industrial, medical, laboratory, and food-grade applications.

Standard models suit routine indoor applications. Water-cooled vertical systems are better for continuous heavy-duty industrial operation.

No oil enters the compression chamber, so maintenance mainly involves filter checks and periodic inspection of working components.

Yes. Existing CFM demand, pressure range, and pipeline layout are checked before recommending the right compressor configuration.

Yes. Frank Compressors handles installation, commissioning, and start-up support across Kolkata industrial zones and nearby districts.

Yes. Genuine spare parts are stocked for quick replacement, helping reduce downtime during servicing or repairs.

Yes. Compact footprint and low operating noise allow installation inside indoor utility rooms and sensitive working environments.
