Energy-Saving PM Screw Air Compressor Manufacturer in UAE

ISO 9001:2015 TUV certified and serving industries across Pan India since 2003.

View All Products
0

Years Experience

0

Happy Clients

0

Countries Served

Permanent Magnet Screw Air Compressor From India to UAE

A Permanent Magnet (PM) screw air compressor uses a variable frequency drive and a permanent magnet motor to adjust air output based on real time demand. It avoids constant full load operation and reduces unnecessary energy use compared to fixed speed compressors.

Frank Compressors delivers high efficiency compressed air solutions for industries in the UAE. Our systems are certified under CE, ISO 9001 quality system, and ISO 8573 air quality standards. Our systems contribute to reducing energy use and improving operation stability, which ensures industrial operations round-the-clock.

Why UAE Industries
Are Switching to
PM Screw Technology

Industries in the UAE face high energy demand, and compressed air uses significant electricity under continuous operation. PM screw technology improves efficiency, stability, and reduces operating costs.

Call Now

Energy Savings & Cost Efficiency

Energy consumption reduces by 30 to 50 % compared to fixed speed systems. This improves long term operating cost efficiency in high duty cycle environments.

Compliance with UAE Efficiency Standards

Systems support UAE Green Agenda 2030 initiatives and align with IE4 and IE5 motor efficiency requirements used in modern industrial zones.

High Temperature Reliability

Built for continuous operation in temperatures up to 50°C, ensuring stable output in oil, manufacturing, and logistics applications.

Key Features of Frank PM Screw Air Compressors

  • High efficiency IE4 and IE5 grade permanent magnet motor
  • Variable frequency drive for precise speed control.
  • Near 100% transmission efficiency system.
  • Wide motor load range from 20% to 110%.
  • Stable air pressure output with reduced fluctuation.
  • Oil injected screw system for cooling and sealing.
  • IP55 protection option for dust and humidity environments.
  • Stainless steel 316 control tubing for corrosion resistance.
  • Cartridge type oil separator and filtration system.
  • Full side open cabinet for easy maintenance access.
  • Smart monitoring system with real time data tracking.
  • Low maintenance design with long service intervals.

High-performance air compressors built for industrial operations.

View all Products

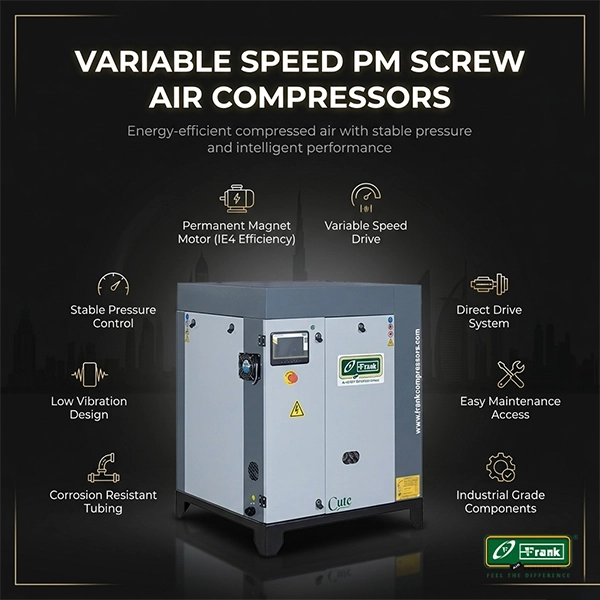

Variable Speed PM Screw Air Compressors

A variable speed PM screw air compressor adjusts motor speed based on air demand to improve energy efficiency and maintain stable pressure for industrial use.

Special Features:

  • Permanent Magnet Motor: IE4 grade PM motor delivers high efficiency and long service life.
  • Variable Speed Drive: Matches motor speed with demand to reduce energy use.
  • Pressure Control: Maintains stable air pressure with minimal fluctuation.
  • Direct Drive Transmission: Ensures full efficiency without mechanical losses.
  • Stable Internal Design: Supports smooth operation with low vibration and heat.
  • Low Maintenance Access: Side open cabinet enables easy servicing.
  • Corrosion Resistant Tubing: Enhances durability and reliability.
  • Industrial Components: Ensures safe and continuous operation.

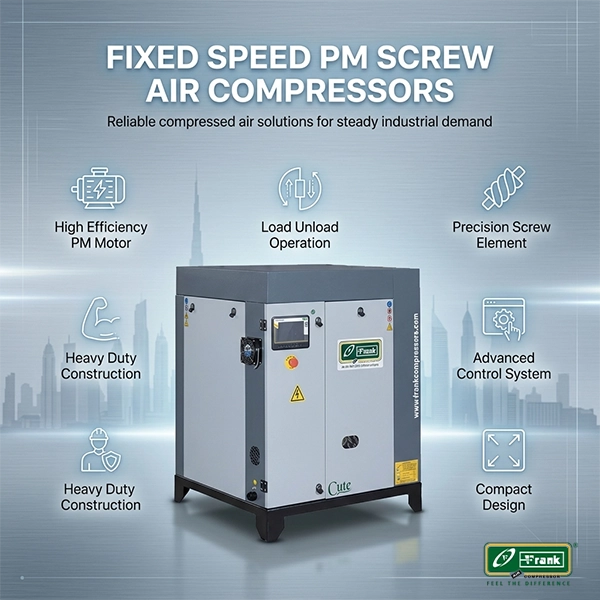

Fixed Speed PM Screw Air Compressors

A fixed speed PM screw air compressor operates at constant speed for applications with steady air demand in industrial use.

Special Features:

  • High Efficiency PM Motor: Improves energy efficiency over conventional motors.
  • Load Unload Operation: Maintains stable pressure during operation.
  • Precision Screw Element: Reduces leakage and improves air delivery.
  • Heavy Duty Construction: Provides durability in demanding conditions.
  • Advanced Control System: Tracks performance and maintenance needs.
  • Compact Design: Simplifies installation and saves space.

Choose the Right PM Screw Air Compressor Capacity

We supply different capacity models based on your air demand and industry requirement, including:

10 HP PM Screw Air Compressor
15 HP PM Screw Air Compressor
20 HP PM Screw Air Compressor
25 HP PM Screw Air Compressor
30 HP PM Screw Air Compressor
40 HP PM Screw Air Compressor
50 HP PM Screw Air Compressor
60 HP PM Screw Air Compressor
75 HP PM Screw Air Compressor
100 HP PM Screw Air Compressor
125 HP PM Screw Air Compressor
Custom industrial models available

Enquiry For Compressor

0

Happy Clients

0

Dealers

How PM Screw Air Compressors Works?

01

Air Intake Stage

Filtered air enters the system, removing dust and protecting internal components.

02

Variable Speed Compression

The permanent magnet motor adjusts speed based on air demand to reduce energy loss.

03

Compression Stage

Air is compressed between screw rotors with oil injection for cooling and sealing efficiency.

04

Pressure Control Stage

The variable frequency drive maintains stable pressure by adjusting motor speed continuously.

05

Air Delivery Stage

Compressed air is cooled, separated, and delivered at stable pressure for industrial use.

Technical Specifications


Model		 Max Working
Pressure
in kg/cm2 		Motor
Flow cfm
Noise dB (A)
Weight (kgs)
L W H (mm)
HP Kw
Cute 10 7 to 8 10 7.5 45 64 240 950 x 770 x 1120
Cute 15 7 to 8 15 11 68 65 300 1000 x 850 x 1240
Cute 20 7 to 8 20 15 89 65 330 1000 x 850 x 1240
Cute 25 7 to 8 25 18 120 67 350 1000 x 850 x 1240
Cute 30 7 to 8 30 22 138 68 370 1000 x 850 x 1240
Cute 40 7 to 8 40 30 205 70 440 1310 x 120 x 1530
Cute 50 7 to 8 50 37 248 70 505 1310 x 120 x 1530
Cute 60 7 to 8 60 45 316 70 1060 1310 x 120 x 1530
Cute 75 7 to 8 75 55 399 72 950 1900 x 1300 x 1600
Cute 100 7 to 8 100 75 572 72 1000 1900 x 1300 x 1600
Cute 125 7 to 8 125 90 642 75 1400 2100 x 1600 x 2000
Sectors

Industries Using PM Screw Compressors in the UAE

Oil & Gas Facilities

Offshore oil rigs and onshore processing units need PM compressors for instrument air, control air, and utility air. Continuous running calls for efficient energy utilization.

Food & Beverage Production

Compressors for clean, oil-free adjacent air in food packing. Companies operating in Jebel Ali and Khalifa Industrial Zone have pneumatic conveying and filling applications requiring constant pressure.

Automobiles & Metal Manufacturing

Applications include spray booths, CNC machines, and robotic lines in Dubai Industrial City and Sharjah Industrial Area. Constant pressure is needed 24/7.

Textile & Garment Factories

Spinning, weaving, and finishing machines run on compressed air. PM technology reduces the energy cost per meter of fabric produced.

Pharmaceuticals & Healthcare

Sterile air needs for pharma clusters in Abu Dhabi and Dubai need to be reliable as well as energy-efficient.

Construction & Infrastructure

Mobile and fixed PM air compressors help in drilling, sandblasting, and concrete works on UAE megaprojects.

Cold Storage & Logistics

Warehouses in temperature-controlled zones benefit from compressors that handle high ambient heat without performance degradation.

Advantages Over Conventional Screw Compressors

Aspect Conventional Screw Compressors PM Screw Compressors
Energy Use Start and stop operation causes high power spikes Runs at variable speed and saves energy by matching demand
Motor Stress Frequent starts create high electrical stress Smooth operation reduces motor stress
Component Life Shorter due to repeated cycling Longer due to stable running conditions
Performance Control Fixed speed with on off control Continuous speed adjustment based on demand
Environment Suitability Needs extra protection in harsh conditions IP55 protection handles dust and humidity easily
Monitoring Limited or basic controls Smart controls with real time data access
System Integration Limited connectivity Connects with SCADA and BMS systems
Maintenance Interval Shorter service cycles Oil changes around 4000 hours and air end service up to 16000 hours
Downtime Higher due to frequent maintenance Lower due to longer service life

Smart Control & Remote Monitoring

Frank Compressors systems use advanced control technology to improve efficiency, uptime, and operational control in industrial environments.

  • Real time monitoring of pressure, temperature, and power for better system visibility
  • Automatic fault detection to reduce unexpected breakdowns
  • Maintenance alerts that help plan service in advance
  • Multi compressor coordination for large industrial setups
  • Remote access through 4G or LAN for easy system control
  • Data tracking for energy management and ESG reporting

These features help support ISO 50001 energy management requirements and LEED compliant industrial facilities across the UAE.

Why frank?

Why Choose Frank PM Screw Air Compressors in the UAE?

Energy Efficient Operation

Our PM screw compressors reduce energy consumption by 30 to 50 % compared to fixed speed systems, helping industries significantly lower operating costs.

Faster Return on Investment

Most users recover the initial investment within 12 to 24 months through consistent energy savings and improved system efficiency.

Built for Continuous UAE Conditions

Designed for 24/7 industrial operation in temperatures up to 50°C, ensuring stable performance in oil & gas, manufacturing, and logistics environments.

Talk to Frank Compressors Expert for PM Screw Air Compressors

Get the right PM screw air compressor solution tailored to your industry, load pattern, and operating conditions. Our UAE technical team helps you choose the most efficient setup for long term performance and cost savings.

Call Whatsapp

Client Experiences with Frank Compressors

Chitra Sivakumar

India

Frank Compressors has been our trusted compressed air partner for over five years. Their rotary screw compressors deliver consistent performance with excellent energy efficiency. The after-sales support team is responsive and knowledgeable, which makes a huge difference in our daily operations.

★★★★★

sampath p

Marketing Coordinator

United bleachers p ltd mettupalayam, cute 75 + pm compressor. Compressor performances is good, service also good as per seduced hours, spare cost also reasonably. Over i am satisfied past 2 years. Sampath pe

★★★★★

gagan jain

Service was prompt and timely .the engineer reached as reqd so overall experience very nice had ordered two compressors

★★★★★

Surender Kumar

Jaipur

I am using Frank technologies compressor from last 4 year and it's working satisfactory. His service and spares support is good

★★★★★
FAQ

All You Need to Know About PM Screw Air Compressors

A PM screw air compressor uses a permanent magnet motor with a variable frequency drive to adjust output based on real time air demand. It improves efficiency and reduces unnecessary energy use in industrial operations.

UAE industries run long operating hours in high temperatures. PM screw compressors reduce energy consumption, handle heat better, and improve overall system stability in continuous production environments.

In typical UAE industrial usage, PM screw compressors reduce energy consumption by 30 to 50% compared to fixed speed systems, especially in 24/7 operations.

Yes, they are built for harsh conditions and can operate reliably in temperatures up to 50°C with protection systems designed for dust and humidity.

They are commonly used in oil and gas, manufacturing, food processing, pharmaceuticals, construction, and logistics sectors across the UAE.

Yes, Frank Compressors provides installation support, maintenance service, and spare parts availability across major UAE industrial zones.

Yes, they are designed for 24/7 industrial duty cycles and maintain stable performance even under continuous high load conditions.
